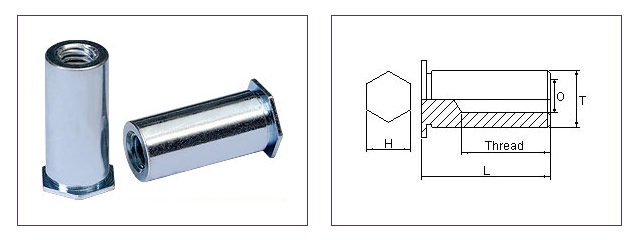

CTSP-FBO
Clinching Metal Fasteners

CTSP-FBO
CTSP-FBO
THREAD SIZES Dimension
H
Dimension
O
Dimension
T
Dimension
L
Part No.
ISO Metric mm mm mm mm Part No.
M2.5 4.79 3.21 4.15 All Sizes CTSP FBO - M2.5 X Length
M3 6.41 3.98 5.35 All Sizes CTSP FBO - M3 X Length
M3.5 6.41 3.98 5.35 All Sizes CTSP FBO - M3.5 X Length
M4 7.89 4.79 7.10 All Sizes CTSP FBO - M4 X Length
M5 7.89 5.21 7.10 All Sizes CTSP FBO - M5 X Length
