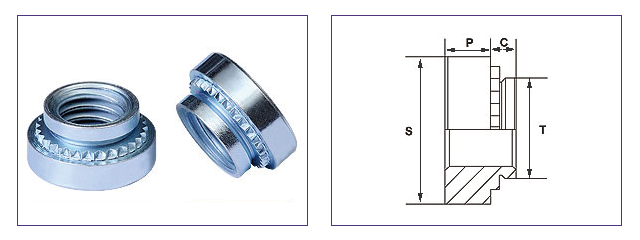

CTSP-FS
| THREAD SIZES | Shank Code |
Dimension C |
Dimension T |
Dimension S |
Dimension P |
Part No. |
| ISO Metric | mm | mm | mm | mm | mm | Part No. |
| M2 | 1 | 0.77 | 4.15 | 6.25 | 1.51 | CTSP FS - M2 - 1 |
| M2 | 2 | 0.96 | 4.15 | 6.25 | 1.51 | CTSP FS - M2 - 2 |
| M2 | 3 | 1.36 | 4.15 | 6.25 | 1.51 | CTSP FS - M2 - 3 |
| M2 | 4 | 2.22 | 4.15 | 6.25 | 1.51 | CTSP FS - M2 - 4 |
| M2.5 | 1 | 0.77 | 4.15 | 6.25 | 1.51 | CTSP FS - M2.5 - 1 |
| M2.5 | 2 | 0.96 | 4.15 | 6.25 | 1.51 | CTSP FS - M2.5 - 2 |
| M2.5 | 3 | 1.36 | 4.15 | 6.25 | 1.51 | CTSP FS - M2.5 - 3 |
| M2.5 | 4 | 2.22 | 4.15 | 6.25 | 1.51 | CTSP FS - M2.5 - 4 |
| M3 | 1 | 0.77 | 4.70 | 7.00 | 1.51 | CTSP FS - M3 - 1 |
| M3 | 2 | 0.96 | 4.70 | 7.00 | 1.51 | CTSP FS - M3 - 2 |
| M3 | 3 | 1.36 | 4.70 | 7.00 | 1.51 | CTSP FS - M3 - 3 |
| M3 | 4 | 2.22 | 4.70 | 7.00 | 1.51 | CTSP FS - M3 - 4 |
| M3.5 | 1 | 0.77 | 4.70 | 7.00 | 1.51 | CTSP FS - M3.5 - 1 |
| M3.5 | 2 | 0.96 | 4.70 | 7.00 | 1.51 | CTSP FS - M3.5 - 2 |
| M3.5 | 3 | 1.36 | 4.70 | 7.00 | 1.51 | CTSP FS - M3.5 - 3 |
| M3.5 | 4 | 2.22 | 4.70 | 7.00 | 1.51 | CTSP FS - M3.5 - 4 |
| M4 | 1 | 0.77 | 5.35 | 7.85 | 2.00 | CTSP FS - M4 - 1 |
| M4 | 2 | 0.96 | 5.35 | 7.85 | 2.00 | CTSP FS - M4 - 2 |
| M4 | 3 | 1.36 | 5.35 | 7.85 | 2.00 | CTSP FS - M4 - 3 |
| M4 | 4 | 2.22 | 5.35 | 7.85 | 2.00 | CTSP FS - M4 - 4 |
| M5 | 1 | 0.77 | 6.31 | 8.65 | 2.00 | CTSP FS - M5 - 1 |
| M5 | 2 | 0.96 | 6.31 | 8.65 | 2.00 | CTSP FS - M5 - 2 |
| M5 | 3 | 1.36 | 6.31 | 8.65 | 2.00 | CTSP FS - M5 - 3 |
| M5 | 4 | 2.22 | 6.31 | 8.65 | 2.00 | CTSP FS - M5 - 4 |
| M6 | 1 | 1.36 | 8.69 | 11.05 | 4.10 | CTSP FS - M6 - 1 |
| M6 | 2 | 2.22 | 8.69 | 11.05 | 4.10 | CTSP FS - M6 - 2 |
| M6 | 3 | 3.06 | 8.69 | 11.05 | 4.10 | CTSP FS - M6 - 3 |
| M8 | 1 | 1.36 | 10.45 | 12.65 | 5.91 | CTSP FS - M8 - 1 |
| M8 | 2 | 2.22 | 10.45 | 12.65 | 5.91 | CTSP FS - M8 - 2 |
| M8 | 3 | 3.06 | 10.45 | 12.65 | 5.91 | CTSP FS - M8 - 3 |
| M10 | 1 | 1.36 | 12.64 | 14.25 | 7.51 | CTSP FS - M10 - 1 |
| M10 | 2 | 2.22 | 12.64 | 14.25 | 7.51 | CTSP FS - M10 - 2 |
| M10 | 3 | 3.06 | 12.64 | 14.25 | 7.51 | CTSP FS - M10 - 3 |
