Clinching Metal Fasteners

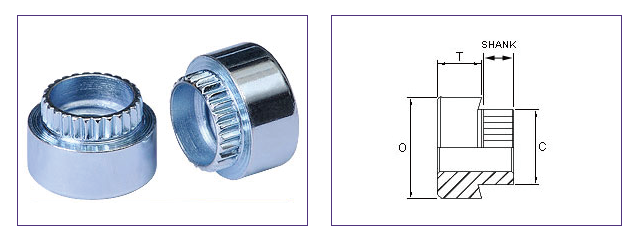

CTSP-FM
| THREAD SIZES | Dimension C | Dimension O | Dimension T | Part No. |
| ISO Metric | mm | mm | mm | Part No. |
| M2 | 3.52 | 4.98 | 2.28 | CTSP FM-M2 |
| M2.5 | 4.21 | 5.49 | 2.81 | CTSP FM-M2.5 |
| M3 | 4.21 | 5.49 | 2.81 | CTSP FM-M3 |
| M3.5 | 5.42 | 7.01 | 3.21 | CTSP FM-M3.5 |
| M4 | 5.42 | 7.01 | 3.21 | CTSP FM-M4 |
| M5 | 6.41 | 8.49 | 3.81 | CTSP FM-M5 |
| M6 | 7.62 | 10.0 | 5.11 | CTSP FM-M6 |
| M8 | 9.71 | 12.0 | 6.51 | CTSP FM-M8 |
