Clinching Metal Fasteners

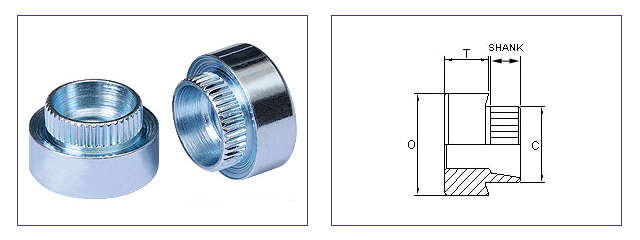

CTSP-FA
| THREAD SIZES | Dimension C | Dimension O | Dimension T | Part No. |
| ISO Metric | mm | mm | mm | Part No. |
| M2.5 / M3 | 5.82 | 7.91 | 3.21 | CTSP FA-M2.5 / M3 |
| M3.5 | 6.91 | 9.61 | 3.81 | CTSP FA-M3.5 |
| M4 | 6.91 | 9.61 | 3.81 | CTSP FA-M4 |
| M5 | 8.32 | 11.2 | 4.42 | CTSP FA-M5 |
| M6 | 9.51 | 12.7 | 5.71 | CTSP FA-M6 |
| M8 | 13.1 | 15.9 | 6.42 | CTSP FA-M8 |
| M10 | 15.5 | 19.1 | 7.61 | CTSP FA-M10 |
| M12 | 19.5 | 25.4 | 10.2 | CTSP FA-M12 |
