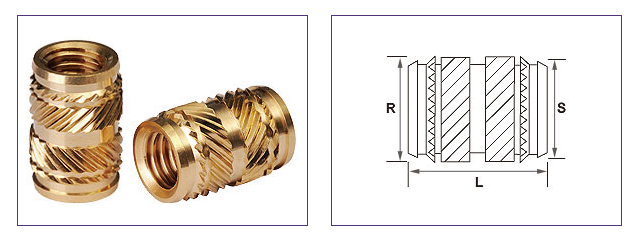

Brass Inserts - Standard
CTSP-IC
| THREAD SIZES |
L |
R |
S |
Rec.Hole -0.00 |
Min wall Thicknes |
| ISO Metric |
mm |
mm |
mm |
mm |
mm |
| M2 | 4.0 | 3.5 | 3.1 | 3.2 | 1.3 |
| M2.5 | 5.7 | 4.4 | 3.9 | 4.0 | 1.6 |
| M3 | 5.7 | 4.4 | 3.9 | 4.0 | 1.6 |
| M3.5 | 7.1 | 5.2 | 4.7 | 4.8 | 1.8 |
| M4 | 8.1 | 6.1 | 5.5 | 5.6 | 2.1 |
| M5 | 9.5 | 6.8 | 6.3 | 6.4 | 2.6 |
| M6 | 12.7 | 8.5 | 7.9 | 8.0 | 3.3 |
| M8 | 12.7 | 10.0 | 9.5 | 9.6 | 4.5 |
| M10 | 12.7 | 12.3 | 11.8 | 11.9 | 6.0 |
