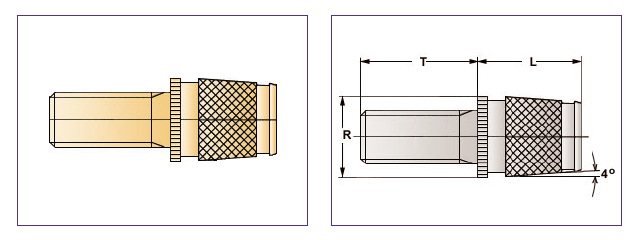

Brass Inserts - Studs
BLST
| THREAD SIZES | L | T | H | R | D | BLST Product code |
BHST Product code |
| ISO Metric | mm | mm | mm | mm | mm | mm | mm |
| M2.5 | 5.0 | 5.0 | 0.6 | 4.1 | 6.0 | BLST-M2.5 X 5.0 | BHST-M2.5 X 5.0 |
| M2.5 | 5.0 | 10.0 | 0.6 | 4.1 | 6.0 | BLST-M2.5 X 10.0 | BHST-M2.5 X 10.0 |
| M3 | 5.5 | 5.0 | 0.6 | 4.7 | 6.0 | BLST-M3 X 5.0 | BHST-M3 X 5.0 |
| M3 | 5.5 | 10.0 | 0.6 | 4.7 | 6.0 | BLST-M3 X 10.0 | BHST-M3 X 10.0 |
| M3 | 5.5 | 15.0 | 0.6 | 4.7 | 6.0 | BLST-M3 X 15.0 | BHST-M3 X 15.0 |
| M3.5 | 6.0 | 5.0 | 0.8 | 5.5 | 7.0 | BLST-M3.5 X 5.0 | BHST-M3.5 X 5.0 |
| M3.5 | 6.0 | 10.0 | 0.8 | 5.5 | 7.0 | BLST-M3.5 X 10.0 | BHST-M3.5 X 10.0 |
| M3.5 | 6.0 | 15.0 | 0.8 | 5.5 | 7.0 | BLST-M3.5 X 15.0 | BHST-M3.5 X 15.0 |
| M4 | 7.5 | 5.0 | 0.8 | 5.9 | 8.0 | BLST-M4 X 5.0 | BHST-M4 X 5.0 |
| M4 | 7.5 | 10.0 | 0.8 | 5.9 | 8.0 | BLST-M4 X 10.0 | BHST-M4 X 10.0 |
| M4 | 7.5 | 15.0 | 0.8 | 5.9 | 8.0 | BLST-M4 X 15.0 | BHST-M4 X 15.0 |
| M5 | 9.0 | 10.0 | 1.0 | 7.0 | 8.5 | BLST-M5 X 10.0 | BHST-M5 X 10.0 |
| M5 | 9.0 | 15.0 | 1.0 | 7.0 | 8.5 | BLST-M5 X 15.0 | BHST-M5 X 15.0 |
| M5 | 9.0 | 25.0 | 1.0 | 7.0 | 8.5 | BLST-M5 X 25.0 | BHST-M5 X 25.0 |
| M6 | 10.0 | 10.0 | 1.0 | 8.6 | 10.0 | BLST-M6 X 10.0 | BHST-M6 X 10.0 |
| M6 | 10.0 | 15.0 | 1.0 | 8.6 | 10.0 | BLST-M6 X 15.0 | BHST-M6 X 15.0 |
| M6 | 10.0 | 25.0 | 1.0 | 8.6 | 10.0 | BLST-M6 X 25.0 | BHST-M6 X 25.0 |
