Brass Inserts - Studs

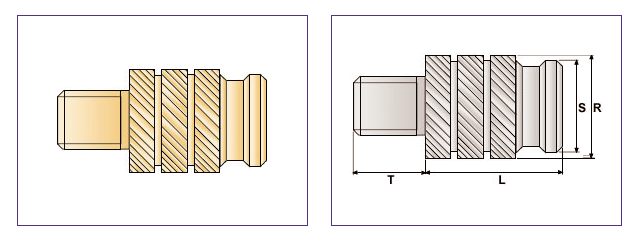

ILST
| THREAD SIZES | L | H | D | R | S | Stud Lengths(T) | Part No. |
| ISO Metric | mm | mm | mm | mm | mm | mm | mm |
| M2 | 4.1 | 0.51 | 4.8 | 3.3 | 3.0 | 5 mm - 25 mm | CTSP IAST-M2 X Studs Lengths |
| M2.5 | 5.3 | 0.58 | 5.5 | 4.2 | 3.7 | 5 mm - 25 mm | CTSP IAST-M2.5 X Studs Lengths |
| M3 | 5.3 | 0.58 | 5.5 | 4.2 | 3.7 | 5 mm - 25 mm | CTSP IAST-M3 X Studs Lengths |
| M3.5 | 6.3 | 0.74 | 6.4 | 5.0 | 4.5 | 5 mm - 25 mm | CTSP IAST-M3.5 X Studs Lengths |
| M4 | 7.4 | 0.89 | 7.1 | 5.8 | 5.3 | 5 mm - 25 mm | CTSP IAST-M4 X Studs Lengths |
| M5 | 8.3 | 1.07 | 7.9 | 6.6 | 6.1 | 5 mm - 25 mm | CTSP IAST-M5 X Studs Lengths |
| M6 | 9.2 | 1.32 | 9.5 | 8.2 | 7.7 | 5 mm - 25 mm | CTSP IAST-M6 X Studs Lengths |
| M8 | 9.2 | 1.32 | 11.1 | 9.7 | 9.3 | 5 mm - 25 mm | CTSP IAST-M8 X Studs Lengths |
| M10 | 9.2 | 1.57 | 14.0 | 12.7 | 12.2 | 5 mm - 25 mm | CTSP IAST-M10 X Studs Lengths |
