Brass Inserts - Studs

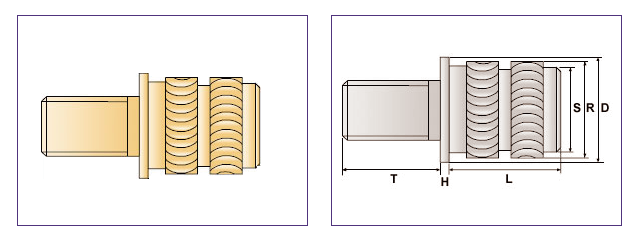

IKST
| THREAD SIZES |
L | H | D | R | S | No Of |
Stud Lengths (T) |
Part No. |
| ISO Metric | mm | mm | mm | mm | mm | Fins | mm | mm |
| M2 | 4.0 | 0.45 | 4.8 | 3.7 | 3.1 | 2 | 5 mm - 25 mm | CTSP IJST-M2 X Studs Lengths |
| M2.5 | 4.8 | 0.58 | 5.5 | 4.5 | 3.9 | 3 | 5 mm - 25 mm | CTSP IJST-M2.5 X Studs Lengths |
| M3 | 4.8 | 0.58 | 5.5 | 4.5 | 3.9 | 3 | 5 mm - 25 mm | CTSP IJST-M3 X Studs Lengths |
| M3.5 | 6.4 | 0.74 | 6.4 | 5.3 | 4.7 | 4 | 5 mm - 25 mm | CTSP IJST-M3.5 X Studs Lengths |
| M4 | 7.9 | 0.89 | 7.1 | 6.1 | 5.5 | 5 | 5 mm - 25 mm | CTSP IJST-M4 X Studs Lengths |
| M5 | 9.5 | 1.07 | 7.9 | 7.0 | 6.3 | 5 | 5 mm - 25 mm | CTSP IJST-M5 X Studs Lengths |
| M6 | 12.7 | 1.32 | 9.5 | 8.6 | 7.9 | 7 | 5 mm - 25 mm | CTSP IJST-M6 X Studs Lengths |
| M8 | 12.7 | 1.32 | 11.0 | 10.2 | 9.5 | 7 | 5 mm - 25 mm | CTSP IJST-M8 X Studs Lengths |
