Brass Inserts - Studs

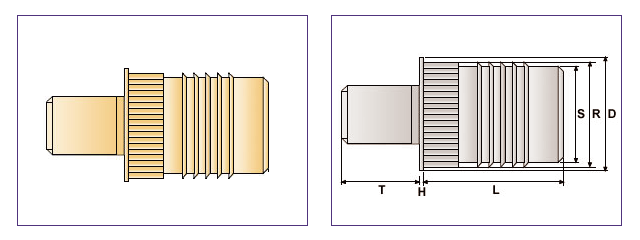

IIST
| THREAD SIZES | L | H | D | R | S | Stud Lengths(T) | Part No. |
| ISO Metric | mm | mm | mm | mm | mm | mm | mm |
| M2 | 3.9 | 0.51 | 4.8 | 3.5 | 3.1 | 5 mm - 25 mm | CTSP IHST-M2 X Studs Lengths |
| M2.5 | 5.8 | 0.58 | 5.5 | 4.4 | 3.9 | 5 mm - 25 mm | CTSP IHST-M2.5 X Studs Lengths |
| M3 | 5.8 | 0.58 | 5.5 | 4.4 | 3.9 | 5 mm - 25 mm | CTSP IHST-M3 X Studs Lengths |
| M3.5 | 7.1 | 0.74 | 6.4 | 5.2 | 4.7 | 5 mm - 25 mm | CTSP IHST-M3.5 X Studs Lengths |
| M4 | 8.1 | 0.89 | 7.1 | 6.1 | 5.5 | 5 mm - 25 mm | CTSP IHST-M4 X Studs Lengths |
| M5 | 9.5 | 1.07 | 7.9 | 6.9 | 6.3 | 5 mm - 25 mm | CTSP IHST-M5 X Studs Lengths |
| M6 | 12.7 | 1.32 | 9.5 | 8.5 | 7.9 | 5 mm - 25 mm | CTSP IHST-M6 X Studs Lengths |
| M8 | 12.7 | 1.32 | 11.1 | 10.0 | 9.5 | 5 mm - 25 mm | CTSP IHST-M8 X Studs Lengths |
