Brass Inserts - Studs
ICST

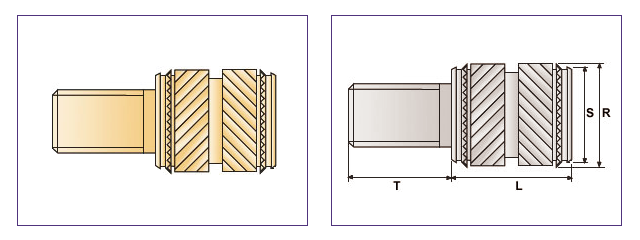

| THREAD SIZES | L | R | S | Stud Lengths(T) | Part No. |
| ISO Metric | mm | mm | mm | mm | mm |
| M2 | 4.0 | 3.5 | 3.1 | 5 mm - 25 mm | CTSP ICST-M2 X Studs Lengths |
| M2.5 | 5.7 | 4.4 | 3.9 | 5 mm - 25 mm | CTSP ICST-M2.5 X Studs Lengths |
| M3 | 5.7 | 4.4 | 3.9 | 5 mm - 25 mm | CTSP ICST-M3 X Studs Lengths |
| M3.5 | 7.1 | 5.2 | 4.7 | 5 mm - 25 mm | CTSP ICST-M4 X Studs Lengths |
| M4 | 8.1 | 6.1 | 5.5 | 5 mm - 25 mm | CTSP ICST-M5 X Studs Lengths |
| M5 | 9.5 | 6.8 | 6.3 | 5 mm - 25 mm | CTSP ICST-M5 X Studs Lengths |
| M6 | 12.7 | 8.5 | 7.9 | 5 mm - 25 mm | CTSP ICST-M6 X Studs Lengths |
| M8 | 12.7 | 10.0 | 9.5 | 5 mm - 25 mm | CTSP ICST-M8 X Studs Lengths |
| M10 | 12.7 | 12.3 | 11.8 | 5 mm - 25 mm | CTSP ICST-M10 X Studs Lengths |
