Brass Inserts - Studs

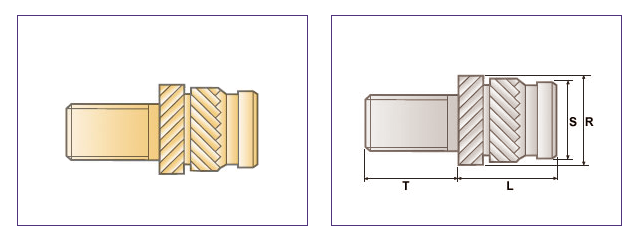

IAST
| THREAD SIZES | L | H | D | R | S | Stud Lengths(T) | Part No. |
| ISO Metric | mm | mm | mm | mm | mm | mm | mm |
| M2 | 4.0 | 0.53 | 4.8 | 3.6 | 3.1 | 5 mm - 25 mm | CTSP IAST-M2 X Studs Lengths |
| M2.5 | 5.74 | 0.61 | 5.5 | 4.6 | 3.9 | 5 mm - 25 mm | CTSP IAST-M2.5 X Studs Lengths |
| M3 | 5.74 | 0.61 | 5.5 | 4.6 | 3.9 | 5 mm - 25 mm | CTSP IAST-M3 X Studs Lengths |
| M3.5 | 7.1 | 0.76 | 6.4 | 5.4 | 4.7 | 5 mm - 25 mm | CTSP IAST-M3.5 X Studs Lengths |
| M4 | 8.1 | 0.91 | 7.1 | 6.3 | 5.5 | 5 mm - 25 mm | CTSP IAST-M4 X Studs Lengths |
| M5 | 9.52 | 1.09 | 7.9 | 7.1 | 6.3 | 5 mm - 25 mm | CTSP IAST-M5 X Studs Lengths |
| M6 | 12.7 | 1.35 | 9.5 | 8.7 | 7.9 | 5 mm - 25 mm | CTSP IAST-M6 X Studs Lengths |
| M8 | 12.7 | 1.35 | 11.1 | 10.2 | 9.5 | 5 mm - 25 mm | CTSP IAST-M8 X Studs Lengths |
| M10 | 12.7 | 1.60 | 14.0 | 12.6 | 11.8 | 5 mm - 25 mm | CTSP IAST-M10 X Studs Lengths |
