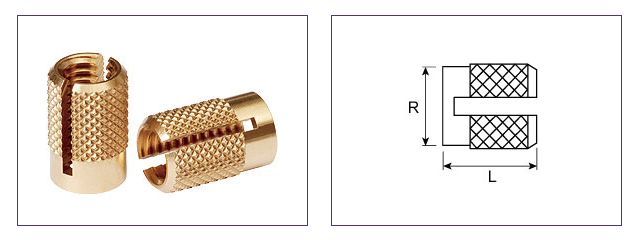

CTSP-IO
| THREAD SIZES | L | H | D | R | Rec.Hole -0.00 |
Min wall Thicknes |
| ISO Metric | mm | mm | mm | mm | mm | mm |
| M2 | 3.9 | 0.43 | 4.8 | 3.2 | 3.2 | 2.4 |
| M2.5 | 4.7 | 0.51 | 5.5 | 4.0 | 4.0 | 3.2 |
| M3 | 4.7 | 0.51 | 5.5 | 4.0 | 4.0 | 3.2 |
| M3.5 | 6.3 | 0.66 | 6.4 | 4.7 | 4.8 | 3.6 |
| M4 | 7.9 | 0.82 | 7.1 | 5.5 | 5.6 | 4.0 |
| M5 | 9.4 | 0.99 | 7.9 | 6.3 | 6.4 | 4.8 |
| M6 | 12.6 | 1.25 | 9.5 | 7.9 | 8.0 | 6.0 |
| M8 | 12.6 | 1.25 | 11.1 | 9.5 | 9.6 | 7.0 |
