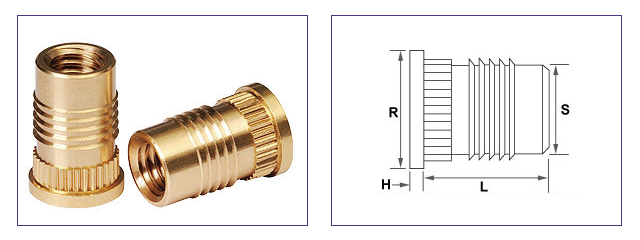

CTSP-IK
| THREAD SIZES | L | H | D | R | S | No Of |
Rec.Hole -0.00 |
Min wall Thicknes |
| ISO Metric | mm | mm | mm | mm | mm | Fins | mm | mm |
| M2 | 4.0 | 0.45 | 4.8 | 3.7 | 3.1 | 2 | 3.2 | 1.6 |
| M2.5 | 4.8 | 0.58 | 5.5 | 4.5 | 3.9 | 3 | 4.0 | 2.0 |
| M3 | 4.8 | 0.58 | 5.5 | 4.5 | 3.9 | 3 | 4.0 | 2.0 |
| M3.5 | 6.4 | 0.74 | 6.4 | 5.3 | 4.7 | 4 | 4.8 | 2.4 |
| M4 | 7.9 | 0.89 | 7.1 | 6.1 | 5.5 | 5 | 5.6 | 2.8 |
| M5 | 9.5 | 1.07 | 7.9 | 7.0 | 6.3 | 5 | 6.4 | 3.2 |
| M6 | 12.7 | 1.32 | 9.5 | 8.6 | 7.9 | 7 | 8.0 | 4.0 |
| M8 | 12.7 | 1.32 | 11.0 | 10.2 | 9.5 | 7 | 9.6 | 4.8 |
